The Memory Access function allows running, loading and saving files directly into and from the emulated computer memory. The file format can be: program and/or data files (.comx, .pecom, .tmc600, .rca and .super), intel hex (.hex) or binary (.bin, .rom, .ram, .cos, .c8, .c8x). During installation some software is installed in the emulator directories (located in the application data directory, see Directory and File Structure).
Program and data files (format designed for this emulator only, like .comx, .pecom, .tmc600, .fpb, .rca and .super) can be loaded in the following emulators:

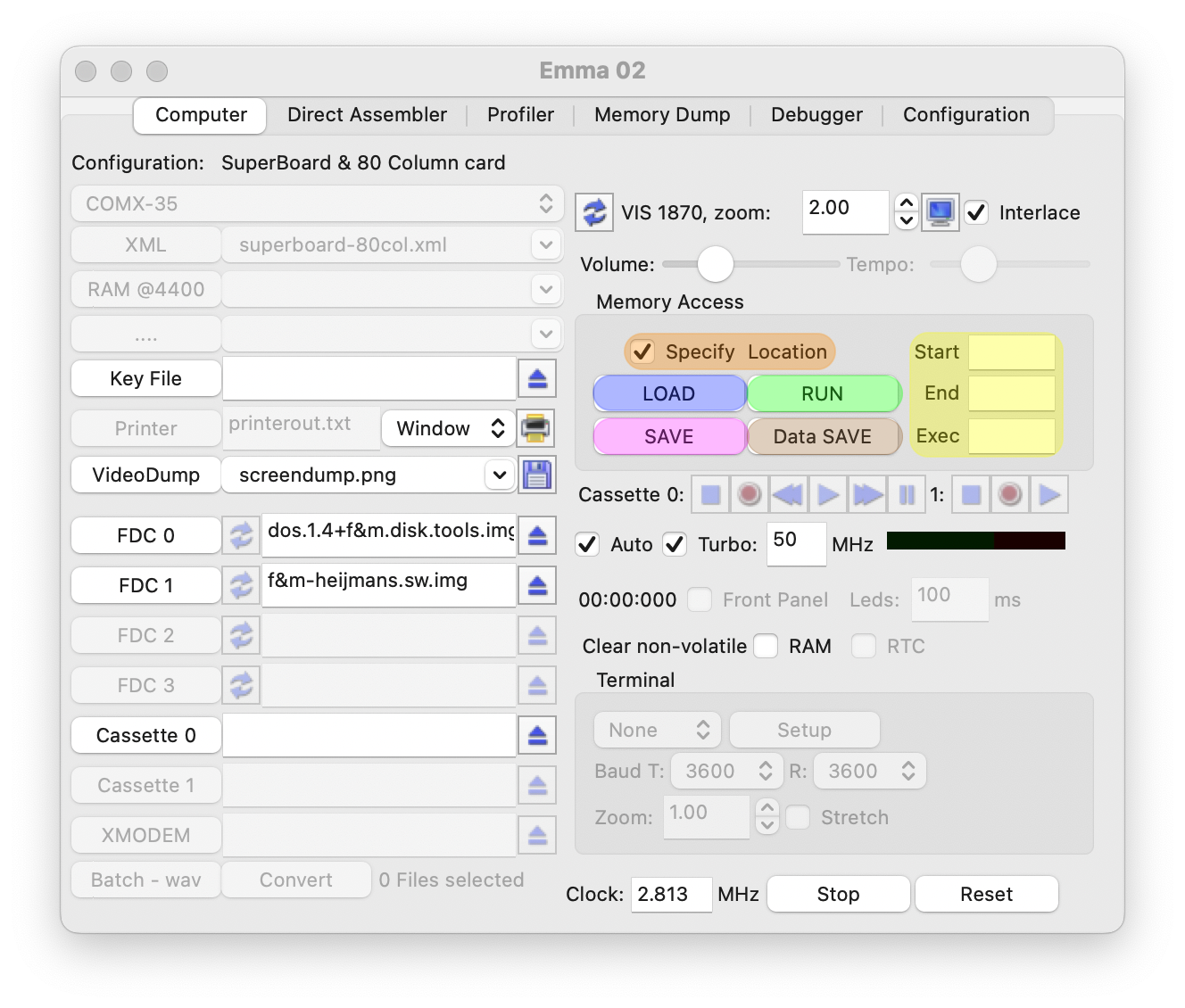

To load AND run a program file, start one of the mentioned emulators and use the 'RUN' button (highlighted in green). After this select one of the program files. The emulator will then automatically load and run the software. Note this is also possible from a start-up screen, the emulator will then first force BASIC to start after which the software will be loaded and started.
To only load a program file, start one of the mentioned emulators and use the 'LOAD' button (highlighted in blue). After this select one of the program files. Note this is also possible from a start-up screen, the emulator will then first force BASIC to start after which the software will be loaded.
To save a basic and/or a basic/machine code program from one of the mentioned emulators to a program file: use the 'SAVE' button (highlighted in purple) and select a filename.
To save data like with the 'DSAVE' command, use the 'data SAVE' button (highlighted in brown) when the data is ready. The data can be loaded back into the basic SW when the program is running. So any DLOAD command could be edited to allow manual use of the 'DLOAD' function. For data loading the regular 'LOAD' button (highlighted in blue) can be used as the emulator will detect the format of the data file.
To save a specific machine code program somewhere from the emulator RAM: first select the 'Specify Location' check box (highlighted in orange), after this specify start, end and execution address (highlighted in yellow). When using the 'SAVE' button now only the specified location will be saved. When loading the resulting program file the emulator will load it into the specified location and show the location in the Emma 02 window address fields (highlighted in yellow). When using the 'RUN' option on a machine code program file the emulator will start this by using a CALL statement with the execution address.

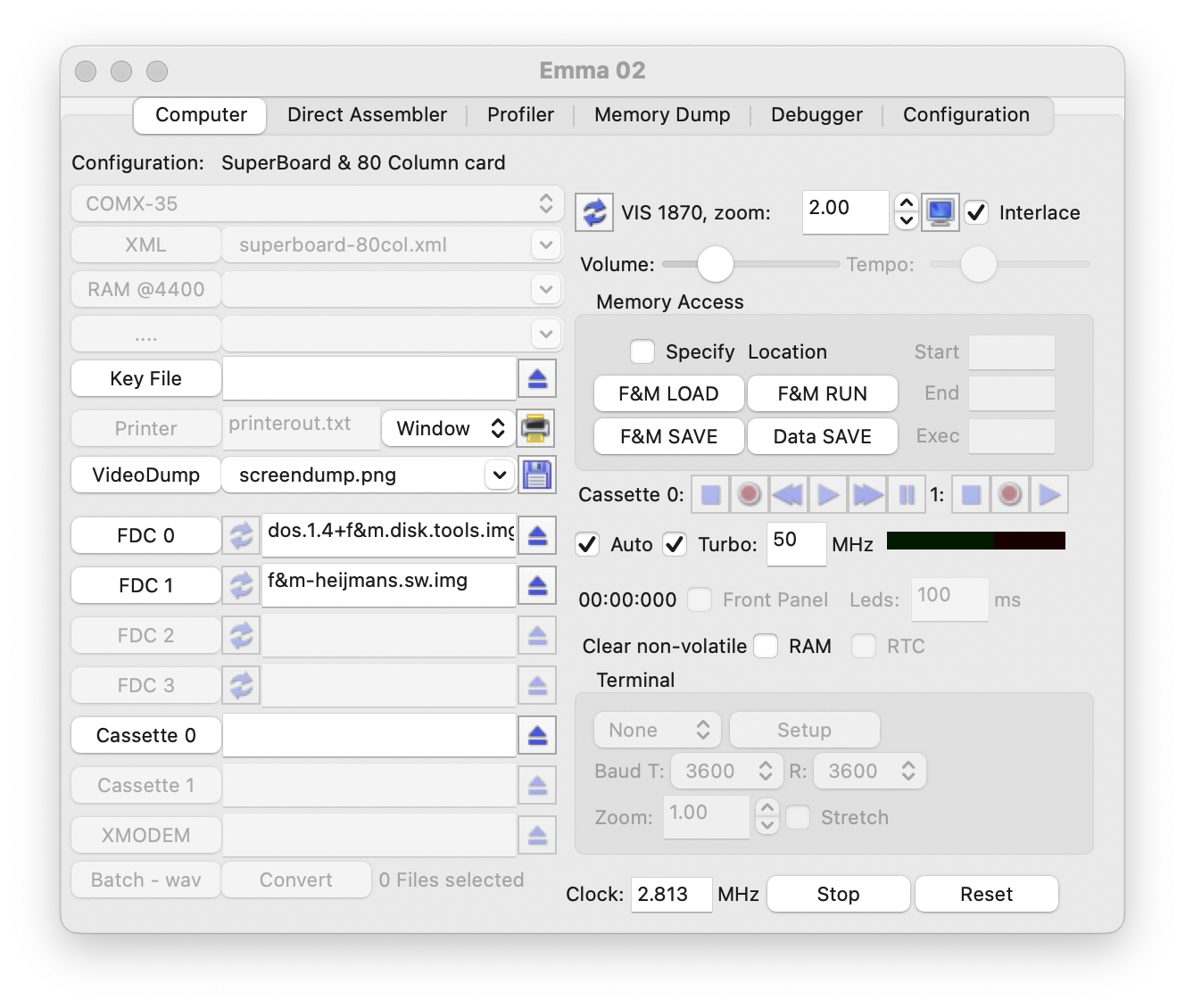

After loading and running F&M Basic on the COMX emulator the Memory Access RUN, LOAD and SAVE button will change to F&M RUN, F&M LOAD and F&M SAVE (see below), after this basic programs written in F&M Basic can be loaded in the same way as described above.
After any RUN, LOAD or SAVE command the software name will be shown in the emulator window. Note on the COMX emulator the same is done after a BASIC DOS LOAD, DOS SAVE, DOS RUN or DOS URUN command. The same name will be shown as default when using memory access features to simplify saving software to program format. When loading machine code via DOS the start and end address will be filled in as save locations, the execution address will always default to the start address.
To load hex and binary files either use the extended Memory Access GUI or for computers not supporting program and data files use the basic Memory Access GUI as shown below:

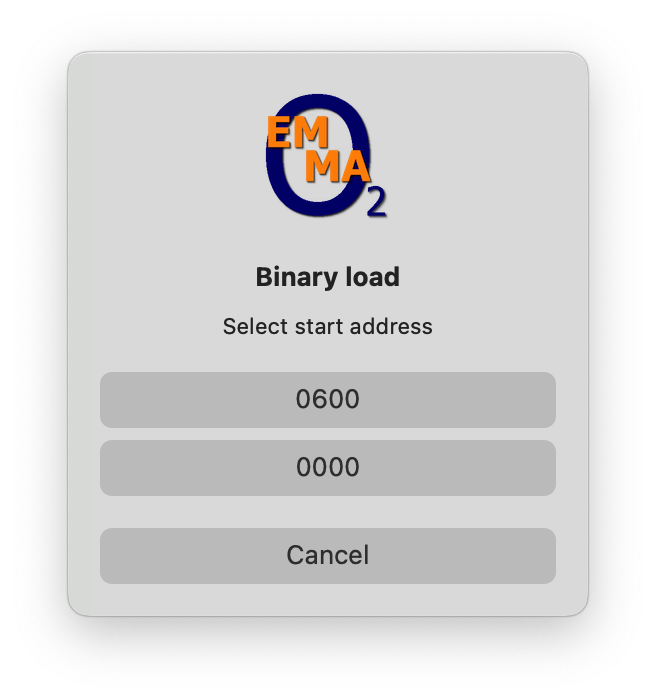

To load an intel hex or binary file into the emulator, start the emulator and use the 'LOAD' button (highlighted in blue). After this select one of the files. Note that intel hex files will be loaded at the correct (saved) memory location. Binary files will be loaded at memory location 0 unless a 'Start' address (highlighted in yellow) is specified, in that case a popup window will request the user to either load at address 0 or the specified start address:
To save from the emulator memory to a file: first specify start and end address (highlighted in yellow) after this use the 'SAVE' button (highlighted in purple) and select a filename. Be sure to use intel hex (.hex) format if you do not use start address 0.
The execution address field is NOT used for Intel Hex and Binary files. Make sure to check 'Specify Location' to specify Start and/or End values when using the extended Memory Access GUI.
After any LOAD or SAVE command the loaded software name will be shown in the emulated computer window.
